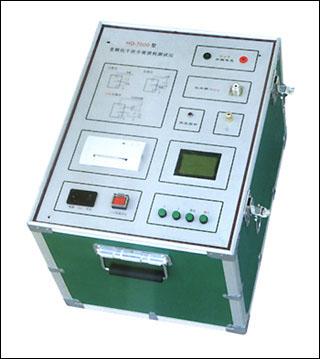

SX-9000C Dielectric Loss TesterAn automated instrument for measuring tgδ and capacitance Cx.Field measurement of tgδ and Cx under HV. Simple, auto, accurate vs Schering bridge. Built-in std cap and HV supply, portable.
Measurement mode:
Selectable normal/reverse, int/ext cap, CVT, int/ext test voltage.
Good anti-interference, eliminates strong E-field interference. Suitable for 500KV substation tests.
HV short/power failure: instant cut-off with alarm.
Good repeatability, linear voltage (accuracy independent of voltage).
Integrated design, moderate weight, portable.
Large Chinese display, easy operation.
Built-in printer for timely data printing.
of, service, credibility,Shanghai Shengxu ElectricCo., Ltd. has achieved success in transportation,power plant、petroleum,Achievements in municipal planning, utilities, mining. Your most reliable long-term partner.
Technical Specifications:
Input: 220V±10%, 50Hz±1
Output: 0.5-10KV selectable, 1.5KVA
Range: Cap ≤60000PF, D/L 0-99%, Res: 0.01%
Accuracy: Cap 1% reading±2PF, D/L 1% reading+0.0005
Dimensions: 420x320x420mm 16Kg
Features:
1.SX-9000C Dielectric Loss TesterUses frequency conversion for accurate measurement under strong E-field interference.
2. Chinese menu, microcomputer auto measurement
3. Also for workshop, lab, research D/L measurement of HV equipment.
4. Normal/reverse wiring for grounded/ungrounded HV equipment. Also measures CVT tgδ and C1/C2.
5. Built-in HV transformer, zero-cross switching, lightning protection. 0.5KV output.
10kV various HV levels, simple and safe operation
