Product Description

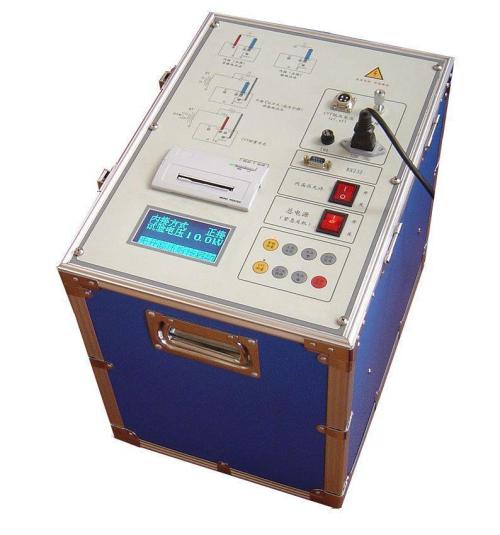

SX-9000D Anti-Interference Dielectric Loss Tester
Darui Electric recommends： I. Overview SX-9000D D/L TesterFor EHV field D/L measurement, VFD anti-int and FFT filtering for stable data under strong E-field. Dual-color LCD, Chinese UI. 2. Technical Specifications Method: VFD anti-interference Test modes: normal, reverse, self-excitation, external Measurement range: Cap internal HV <60000PF External HV: 30pF-600000pF D/L unlimited, min resolution 0.01% Accuracy: Cap ±(1.5% reading+2PF) D/L ±(2% reading+0.09%) Internal test supply: 0.5-10KV, gradual ramp up/down 45-65Hz adjustable, 45/55Hz auto dual frequency Max output current 200mA Self-excitation: 6-50V VFD, max 20A Features 1. Fully auto, Chinese UI, built-in help menu. for fault analysis. 2. Strong anti-interference, stable at 500KV+ substations. Single and 45/55Hz dual frequency testing. 3. Gradual voltage ramp up/down prevents capacitive rise effect, protecting test object and instrument. 4. Overcurrent/overload protection quickly cuts test power. 5. Test cables made of silicone rubber and special insulation, flexible, ground-drag usable at 10KV. 6. Electronic calendar and large storage, 100 data sets. 7. RS232 interface for data upload to computer.
Note: The above information and technical parameters are compiled and published by Yangzhou Darui Electric Co., Ltd.
