Product Description

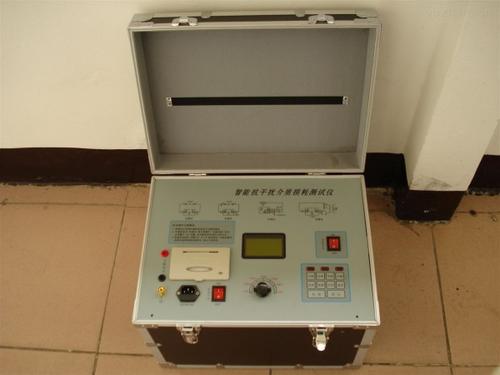

SXJS-IV Intelligent Dielectric Loss Tester
Darui Electric recommends：
1. Overview
SXJS-IVAdvanced instrument for tgδ and Cx measurement.For measuring tgδ and Cx of insulating materials, bushings, cables, capacitors, CT/PT, transformers under HV. Replaces QSI HV bridge. Simple, Chinese display, print, built-in HV, strong anti-int. Our 3rd gen intelligent D/L tester.
2.SXJS-IVTechnical Specs
1. Ambient: -5C~40C (avoid direct sunlight)
2. RH: 30%-70%
3. Power: 220V±10%, 50±1Hz
4. Dimensions: 500x300x400mm
5. Weight: 28kg
6. Output: 1.5KVA
7. Display: 3/4 digits (internal 6)
8. Methods: normal, reverse, external HV
9. Measurement Range: Internal Test Voltage: ≤60000PF (above 30000PF at 10KV)
External HV: depends on test transformer.
10. Basic Measurement Error:
tgδ: 1%±0.04%
Cx: 1%±1pF

Note: The above information and technical parameters are compiled and published by Yangzhou Darui Electric Co., Ltd.
