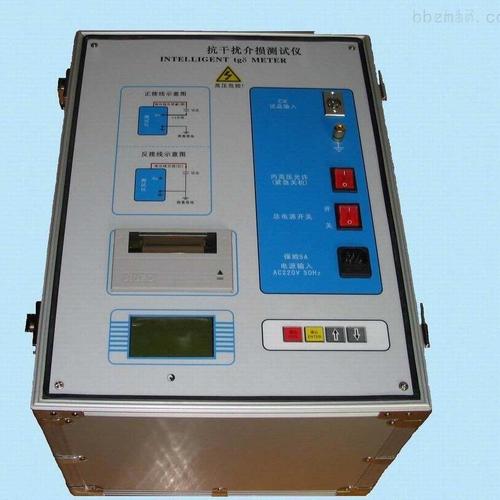

Dielectric Loss Tester
Darui Electric recommends：
Technical Parameters
1. HV output: 0.5-10kV, 500V/step, 20 steps
HV output cable, ground-drag usable
Three frequencies: 45Hz, 50Hz, 55Hz
2. Capacity: 1500VA
3. Accuracy: tgδ: ±(reading*1.0%+0.08%)
Cx: ±(reading*1.5%+5PF)
4. Resolution: tgδ: 0.01% Cx: 1pF
5. Range: 0.1% < tgδ < 50%
3PF< Cx < 60000PF
At 10KV: Cx ≤30000PF
At 5KV: Cx ≤60000PF
6. Power: AC220V±10%, 50±1Hz
7. Harmonic: ≤3%
Usage Notes
1. Only use on de-energized equipment;
2. Built-in booster: ensure HV lead insulation and personnel safety.
3. Must be properly grounded;
4. Check equipment insulation before testing.
5. Confirm withstand voltage, select correct boost range to prevent damage.
6. Keep HV cables away from personnel and LV test leads during testing.
7. Input voltage: AC220V±10%. Operation outside this range may affect test accuracy. Max input: AC264V. Exceeding this causes permanent damage not covered by warranty.
8. If printer jams due to loose paper during transport, remove paper roll, rewind tightly, reinstall.
9. Protect from moisture and vibration;
10. Ground output neutral when using generator power, otherwise a grounding error will be indicated;
Kit Contents
1. Anti-Interference D/L Tester x1
2. HV Output Shielded Cable ×1 set
3. AC220V Power Cord x1
4. 09 Ribbon x1
5. Print Paper x2 rolls
6. Fuse 5A x4
7. Test Input Cable x1 set
8. Factory Inspection Report x1
Note: The above information and technical parameters are compiled and published by Yangzhou Darui Electric Co., Ltd.
