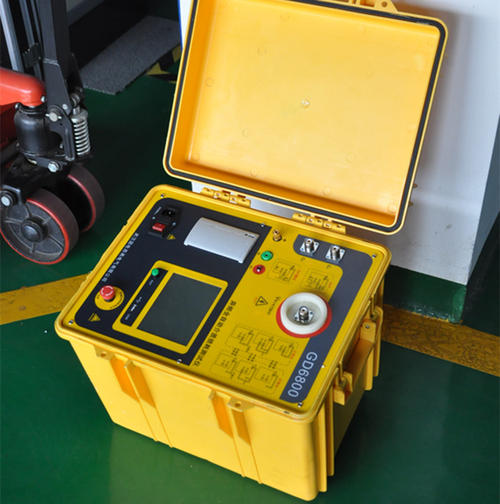

HV Dielectric Loss Test Device
Darui Electric recommends：
High Voltage Dielectric Loss Tester Technical Specifications

1. Test Method: Direct wiring, reverse wiring 2. HV Output: 0.5kV-10kV (1kV per step)

3. Capacitance Range: Cx=30pF-40000pF, Resolution: 0.1pF

Error: at 10KV ≤2000PF, at 2KV ≤60000PF, reading×±1.0%±1PF

4. D/L factor range: tgδ 0.1%-10%, res: 0.0001

Error: reading×±1.0%±0.08%

5. Variable Frequency Output: 45Hz, 50Hz, 55Hz, 55/65Hz, 60Hz, 65Hz

6. Integrated structure, Weight: 20kg

7. Dimensions: 470×370×410mm

Usage Method

1. Power Supply: AC220V±22V 50Hz±1Hz

2. Operating Environment: Temperature -5℃-40℃ Humidity <85%RH

Product Features:

A specialized high-tech instrument for measuring dielectric loss (tgδ) of various insulating liquids (transformer oil, capacitor oil, cable oil, etc.). Simple operation, high degree of automation.

Microcomputer controlled, independent measurement and temperature control, fully automatic data processing.

Integrated design, compact and lightweight.

Advanced measurement and control, high accuracy, precise temperature control.

LCD Chinese display, simple menu, auto print results.

Note: The above information and technical parameters are compiled and published by Yangzhou Darui Electric Co., Ltd.
