Product Details

2. Large output capacity: VA characteristic test max output voltage up to 1000V, ratio test max current up to 600A, instrument output capacity 5kVA.

3. Optional accessories include external booster, external current booster, and external voltage regulator. External booster max voltage up to 2000V/3A, external current booster up to 1000A, external voltage regulator max output 1500V/20A. With external booster, VA characteristic tests can be performed on 500kV class 1A current transformers.

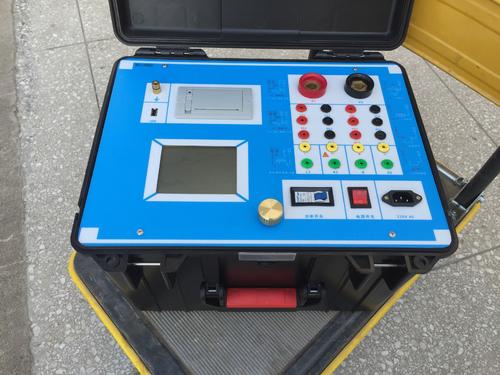

4. Large 320x240 dot matrix graphic interface displays VA characteristic curves directly after testing. Clear and visually appealing graphics for easy analysis. Built-in micro printer for on-demand printing of curves and test results.

5. Rotary mouse input device for convenient and simple operation with long service life.

6. Built-in Flash memory retains data after power loss. Test results can be reviewed and printed indoors after field testing is completed.

7. RS232 communication interface enables PC connection via serial cable. Operators can control the instrument from a computer or upload test data. The included PC application features a powerful, well-designed interface with simple operation for saving, printing, and exporting test data to Excel format.

8. Power supply auto-adapts between AC 220V and AC 380V.

Parameters

	Input Voltage	Output Range	Measurement Range	Measurement Accuracy
Main Unit	220V	0～600V、0～20A	0～600V、0～20A	0.5%
380V	0～1000V、0～20A	0～1000V、0～20A	0.5%
220V	0～600A	0～600A	Ratio Accuracy 0.5%
External booster	220V	0～1650V、0～3A	0～1650V、0～3A	0.5%
380V	0～2000V、0～3A	0～2000V、0～3A	0.5%
External Current Booster	220V	0～1000A	0～1000A	Ratio Accuracy 0.5%
External Voltage Regulator			0～1000V、0～30A	0.5%
Power Supply	AC 220V/380V 50HZ	Dimensions	420×330×320㎜	Weight	24㎏

Note: The above information and technical parameters are compiled and published by Yangzhou Darui Electric Co., Ltd.
