Product Description

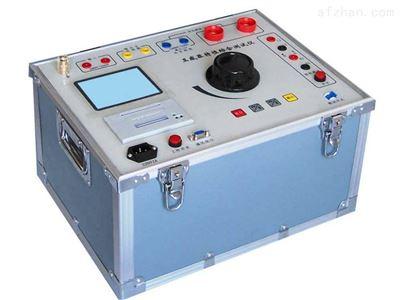

PT VA Characteristic Comprehensive Tester
Darui Electric recommends：
The FA-103 CT/PT VA Characteristic Comprehensive Tester is a fully automated PT and CT characteristic testing instrument

Features
1. Safe and convenient operation, fully computerized with imported high-performance CPU, high reliability. Set test values per on-screen prompts, the instrument auto-completes tests without contacting the device under test, keeping operators away from high voltage for safety.

2. High output capacity: max 1000V for VA characteristic test, max 600A for ratio test, 5KVA output.

3. Optional accessories: external booster (up to 2000V, 3A), external current booster (up to 1000A), external voltage regulator (up to 1500V, 20A). With external booster, can test 500KV class 1A CT VA characteristics.

4. Large 320x240 dot-matrix LCD graphical interface, displays VA characteristic curve directly after test. Built-in micro printer for printing curves and results.

5. Rotary mouse input device, convenient operation, long service life.

6. Built-in Flash memory, data retained after power-off. Review and print test results indoors after field tests.

7. RS232 communication interface for PC connection. Operators can control the instrument via PC or upload test data. PC application software with powerful functions for saving, printing, and exporting test data to Excel format.

8. Auto-adaptive AC220V and AC380V power supply.

Parameters

	Input Voltage	Output Range	Measurement Range	Measurement Accuracy
Main Unit	220V	0～600V、0～20A	0～600V、0～20A	0.5%
380V	0～1000V、0～20A	0～1000V、0～20A	0.5%
220V	0～600A	0～600A	Ratio Accuracy 0.5%
External booster	220V	0～1650V、0～3A	0～1650V、0～3A	0.5%
380V	0～2000V、0～3A	0～2000V、0～3A	0.5%
External Current Booster	220V	0～1000A	0～1000A	Ratio Accuracy 0.5%
External Voltage Regulator			0～1000V、0～30A	0.5%
Power Supply	AC 220V/380V 50HZ	Dimensions	420×330×320㎜	Weight	24㎏

Note: The above information and technical parameters are compiled and published by Yangzhou Darui Electric Co., Ltd.
