TAG5000 HV Wireless Phase Detector
Darui Electric recommends：
In recent years, multiple Chinese companies have counterfeited TAG5000/TAG6000 models, deceiving Chinese consumers. Counterfeit products use English-labeled panels and are sold to power users at prices matching the original French models, seriously violating consumer rights. Power users are advised not to be misled by low prices, as using counterfeit products may lead to safety incidents. Before purchasing, please verify the supplier's authorized agency certificates and related qualification documents.
TAG6000 and TAG5000 share identical product functions and applications, differing only in appearance.

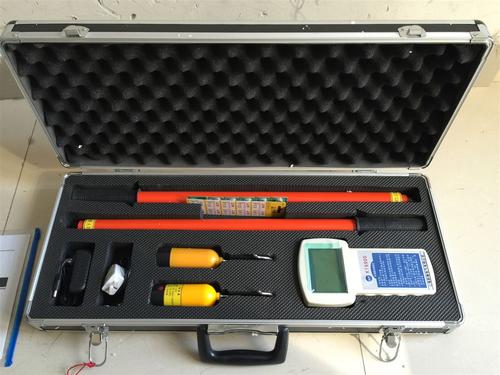

TAG6000 is the model exported by SFE (France) to China, featuring a red and yellow appearance.
TAG5000 is the model exported by SFE (France) to the United States, featuring a blue and gray appearance.
Technical Features
1. Display Content: Wireless HV Phase Detector, Out-of-phase, In-phase, X, Y.
2. Power Supply: Main unit uses 1× battery (NEDA/604/6F22) or equivalent. X and Y collectors each use 5× AG13 batteries.
3. Auto Power-Off: Main unit auto powers off ~15min after startup. 4. Backlight: Press backlight switch when lighting is too dim for reading.
V. Technical Specifications:
① Accuracy: Self-calibration error ≤2°; Field test: In-phase error ≤10°, Out-of-phase error ≤15°
② Sampling Rate: 3 times/sec
③ Main Unit Power: 9V±2V
④ X & Y Collector Power Voltage: 7.5V±1.5V
⑤ Main Unit Operating Current: ≤7mA
⑥ X & Y Collector Operating Current: ≤4mA
⑦ Line-of-Sight Transmission Range — Host to X Collector: ≤80m, Host to Y Collector: ≤50m
⑧ Operating Environment: -35°~+50°C, Humidity: ≤95%RH
⑨ Storage Environment: -40°~+55°C, Humidity: ≤95%RH
⑩ Measurable AC Voltage Range: 0.38kV~500kV
Note: The above information and technical parameters are compiled and published by Yangzhou Darui Electric Co., Ltd.
