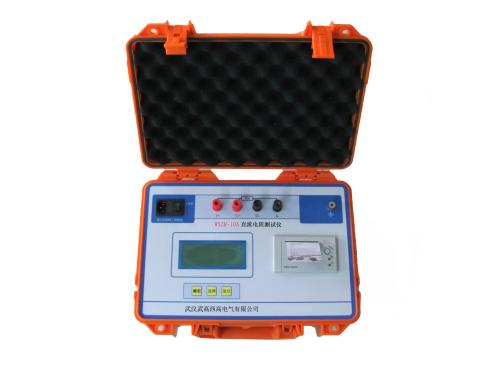

Transformer Tester

Transformer TesterPrecautions:

1. Read this manual carefully before using the instrument.

2. Operators should possess general electrical equipment or instrument knowledge.

3. Can be used indoors or outdoors, but avoid rain, corrosive gas and similar environments.

4. Avoid severe vibration.

5. Maintenance by qualified personnel only.

6. After testing, reset the instrument, power off, then remove test leads.

7. Do not move test clips or power supply wiring during testing.

Transformer TesterAlso Known As
Transformer Tester

Product Features
1. Compact and lightweight, portable, fast testing speed.
2. Test Current: 2.5A, 5A, 10A, 20A, 50A.
3. Imported high-quality components with multi-layer anti-interference software design for high accuracy and good repeatability.
4. Stores up to 255 test records; data retained after reset or power loss. All stored data can be printed for convenient use.
5. LCD display suitable for various working environments.

Technical Specifications

1. Output Current: 10A, 20A, 40A, 100A

2. Range: 10μΩ~100mΩ (100A)

      100μΩ～500mΩ （40A）

      200μΩ～1Ω （20A）

      500μΩ～2Ω （10A）

3. Accuracy: 0.2%

4. Resolution: 0.1μΩ

5. Operating Temp: 0-40C

6. Ambient Humidity: ≤90%RH, non-condensing

7. Power Supply: AC220V±10%, 50Hz±1Hz

8. Net Weight: 17KG

9、外形尺寸：400mm*230mm*380mm

Note: The above information and technical parameters are compiled and published by Yangzhou Darui Electric Co., Ltd.
