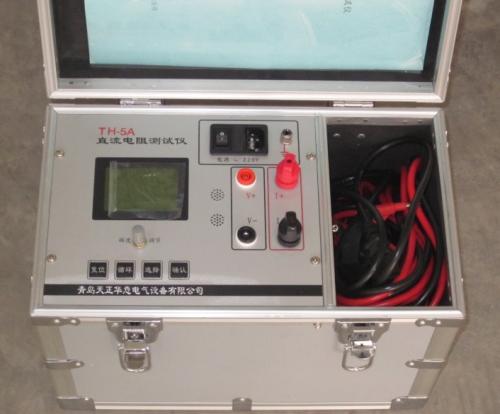

DC Resistance Tester
Recommended by Darui Electric I. Product Overview Transformer TesterAdvanced technology with precision measurement.
Transformer TesterNAdvanced technology with precision measurement.
Product Performance Features
1. High output current with automatic current selection for easy operation.
2. Three-channel measurement with real-time acquisition, simultaneously measuring three resistance values and calculating three-phase resistance unbalance rate.
3. Supports simultaneous three-phase measurement or traditional single-channel measurement, with temperature conversion function for convenient use.
4. Comprehensive protection circuitry for high reliability.
5. Vertical chassis design for convenient field operation.
Technical Specifications
Output Current:
Manual current selection (20A, 10A, 5A, 2.5A, 1.2A, 0.6A, 0.3A, 0.1A)
Output Voltage: DC28V
：0.1μΩ～100Ω
：0.2%±0.5μΩ
：1μΩ
Operating Temp: -20-40C
Ambient Humidity: ≤80%RH, non-condensing
Power Supply: AC220V±10%，50Hz±1Hz
330mm230mm200mm
Net Weight: 10kg
Note: The above information and technical parameters are compiled and published by Yangzhou Darui Electric Co., Ltd.
