Product Details

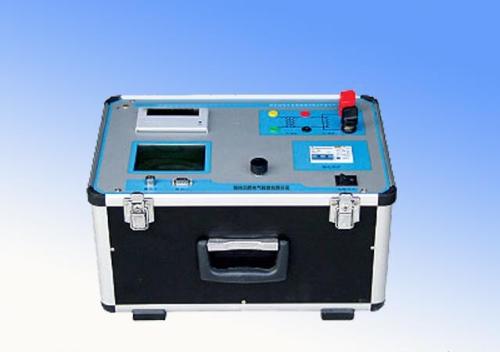

Transformer Characteristic Comprehensive Tester Manufacturer
Darui Electric recommends：
Features
1.Transformer Characteristic Comprehensive Tester ManufacturerSafe and convenient operation, fully microcomputerized with imported high-performance CPU for high reliability. After setting test values via the interface, the instrument automatically completes testing without manual contact with the equipment under test, keeping operators away from high-voltage circuits and ensuring personal safety.

	Input Voltage	Output Range	Measurement Range	Measurement Accuracy
Main Unit	220V	0～600V、0～20A	0～600V、0～20A	0.5%
380V	0～1000V、0～20A	0～1000V、0～20A	0.5%
220V	0～600A	0～600A	Ratio Accuracy 0.5%
External booster	220V	0～1650V、0～3A	0～1650V、0～3A	0.5%
380V	0～2000V、0～3A	0～2000V、0～3A	0.5%
External Current Booster	220V	0～1000A	0～1000A	Ratio Accuracy 0.5%
External Voltage Regulator			0～1000V、0～30A	0.5%
Power Supply	AC 220V/380V 50HZ	Dimensions	420×330×320㎜	Weight	24㎏

Note: The above information and technical parameters are compiled and published by Yangzhou Darui Electric Co., Ltd.
