Product Features

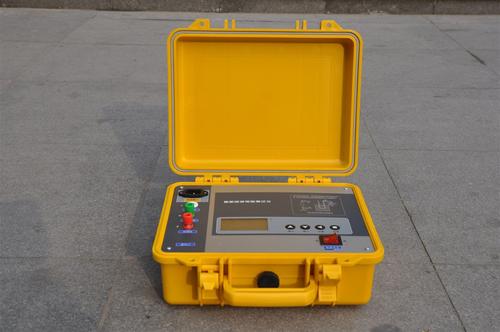

◆The Portable Resistance Tester offers multiple voltage outputs: DME2305 (250V/500V/2500V/5000V) and DME2306 (5000V/10000V), with a resistance measurement range up to 0~400GΩ.
◆Dual-mode insulation resistance display. The analog pointer allows easy observation of insulation resistance variation range, while the digital display provides precise measurement results.
◆Equipped with embedded industrial MCU and real-time operating software system. High automation and strong anti-interference capability. The instrument automatically calculates absorption ratio and polarization index without manual intervention.
◆User-friendly interface with power-loss protection for measurement results. Can continuously store up to 19 measurement records. ◆When the instrument generates high voltage, an audible alert sounds with corresponding display indication.
◆Built-in residual high-voltage discharge circuit automatically discharges residual high voltage from the tested equipment after measurement. ◆Dual AC/DC power supply, equipped with rechargeable batteries and AC adapter.
◆Portable design for convenient field operation. ◆High-voltage short-circuit current ≥3.5mA, making it an ideal instrument for measuring insulation resistance of large transformers, instrument transformers, generators, HV motors, power capacitors, power cables, and lightning arresters.
Technical Parameters
Model: DME2305
Output Voltage: 250V DC / 500V DC / 1000V DC / 2500V DC / 5000V DC
Accuracy: Temperature 23℃±5℃
Insulation Resistance:
250K~5G ±5% / 500K~10G ±5% / 1M~20G ±5% / 2.5M~50G ±5% / 5M~100G ±5%
Other Range: ±10%
Output Voltage: 2M~10G ±5% / 4M~20G ±5% / 8M~40G 0~+10% / 20M~100GΩ 0~+10% / 40M~200G 0~+10%
HV Short Circuit Current: ≥3.5mA
Power Supply: 8x AA high-capacity rechargeable batteries with external charging adapter (or 8x AA alkaline batteries)
Operating Temp & Humidity: -10℃~40℃, max relative humidity 85%
Storage Temp & Humidity: -20℃~60℃, max relative humidity 90%
Insulation Performance: Max 2000MΩ between circuit and enclosure at 1000V DC
Withstand Voltage: 2500V AC between circuit and enclosure for 1 minute
Dimensions: 230mm × 190mm × 90mm (L×W×H)
Weight: 3 kg
Accessories: Test lead set, user manual, certificate of conformity, charging adapter, power cable
