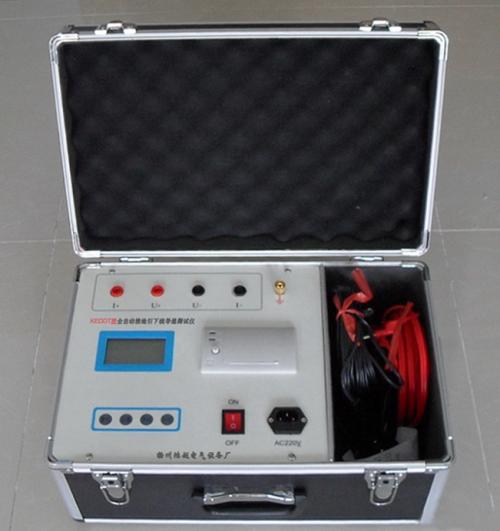

JD-200A Loop Resistance Tester Darui Electric recommends：
I. Product Overview JD-200A Loop Resistance TesterPer Preventive Test Regulations for Power Equipment求，，100A，。，Loop Resistance Tester200A Loop Resistance Tester II. Product Features l High-power constant current output with open-circuit voltage up to 10V; l High output current, lightweight; l Comprehensive protection circuitry for high reliability; l Measurement time selection function to meet specified testing requirements. l Print and storage functions for convenient user operation. 3. Technical Parameters Output Current: 100A/200A Open-Circuit Voltage: 10V Measurement Time: 5-60s (5s step) 0～16000µΩ 100A/ 0-8000µΩ 200A Resolution: 1μΩ ±(1%±5) 430mm×280mm×260mm 7kg 4. Operating Conditions Operating Temp: -10C~50C ≤85%RH AC220V±10% 50±1Hz
Note: The above information and technical parameters are compiled and published by Yangzhou Darui Electric Co., Ltd.
