Turn Ratio and Group Tester

Darui Electric recommends:

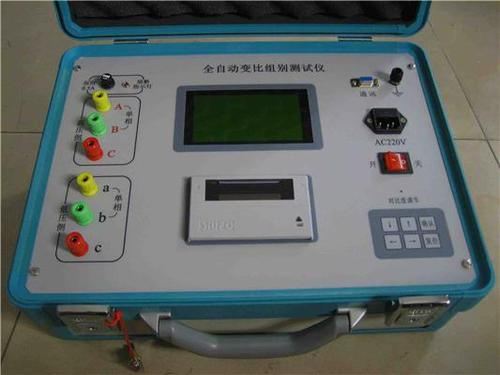

Product Introduction:

  Using a turn ratio bridge to measure the turn ratio of a transformer involves a cumbersome operation process and a narrow measurement range, which no longer meets the fast-paced and high-efficiency requirements of modern measurements. Therefore, our company has adopted modern electronic technology to develop a new generation of turn ratio and group tester. It is small in size, light in weight, high in precision, and good in stability. It features a large-screen Chinese display, menu operation, and a user-friendly interface. The turn ratio and group can be measured at once. This instrument is an ideal testing instrument for the power industry.

Product Parameters:

◆ Turn ratio measurement range: 1—10000

◆ Group: 1—12 points

◆ Accuracy: 1-1000 Class 0.2, 1000-10000 Class 0.5

◆ Power supply: AC220V ±10%, 50HZ

◆ Operating ambient temperature: -5℃ ─ 40℃

◆ Operating ambient humidity: ＜85%

◆ Dimensions: 430×320×215mm3

◆ Weight: 8Kg

Product Features:

◆ Automatically measure the wiring group.

◆ Automatically perform group transformation.

◆ Automatically switch phase sequence.

◆ Automatically switch range.

◆ Automatically calibrate the meter.

◆ After inputting the standard turn ratio, it can automatically calculate the relative error.

◆ Once the measurement is completed, the test voltage is automatically cut off.

◆ Set data, measurement results are automatically saved, and previous data can be viewed.

◆ For measuring on-load transformers, only input the turn ratio once.

Note: The above information and technical parameters are compiled and released by Yangzhou Darui Electric Co., Ltd.
